Plasma Spray Gun Consumables
Classification:
Key words:
E-mail:
Product Details
SupplyPlasma thermal spraying 9MB nozzleand electrodes
The 9MB plasma spray gun is a multifunctional tool in the thermal spray industry, known for its high power and compatibility with various process gases such as argon, helium, hydrogen and nitrogen. It is available in machine-mounted and handheld variants, with the machine-mounted version weighing 3.6kg and the handheld version weighing 3kg. The 9MB series is a commonly used plasma spray gun, especially the Metco 9MB model, supplied by the Oerlikon Metco company.

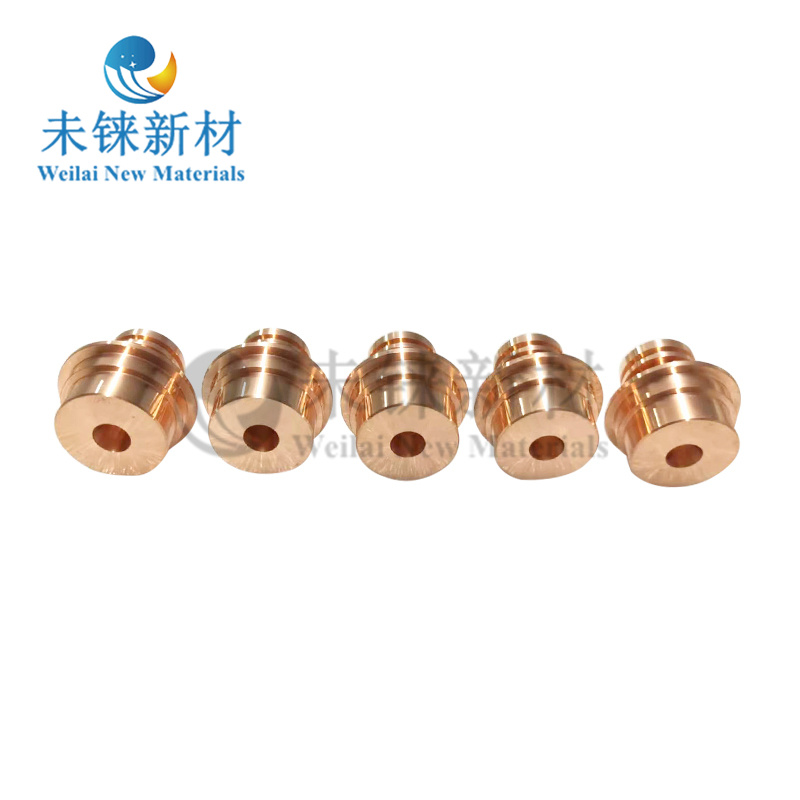

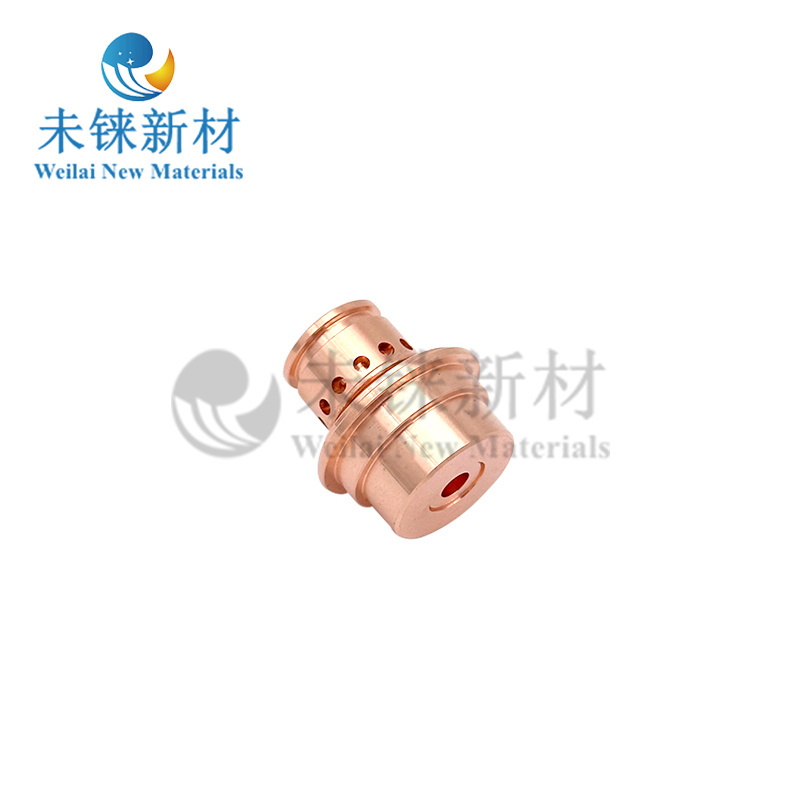

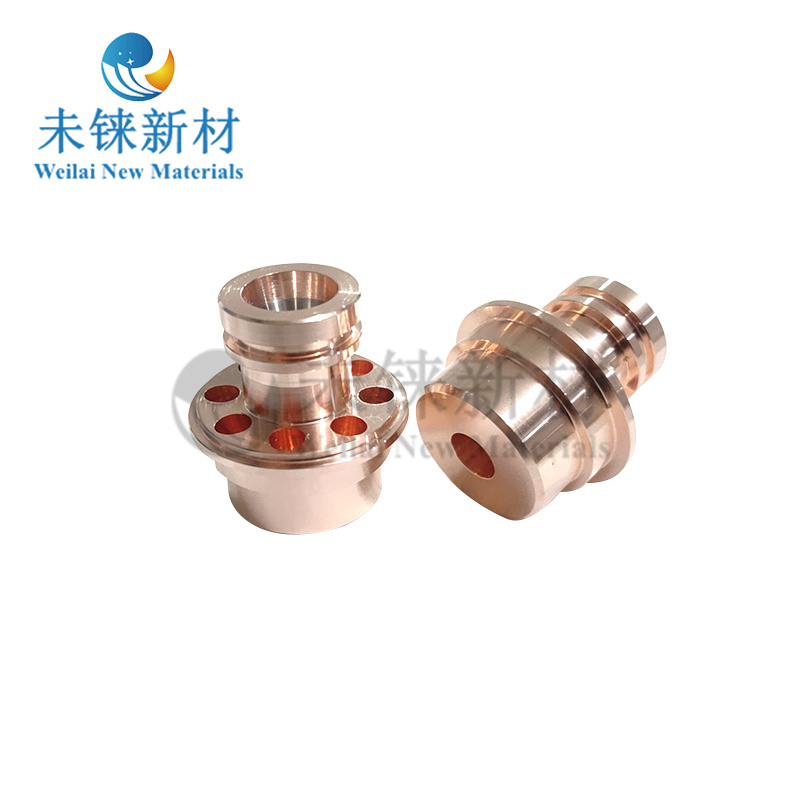

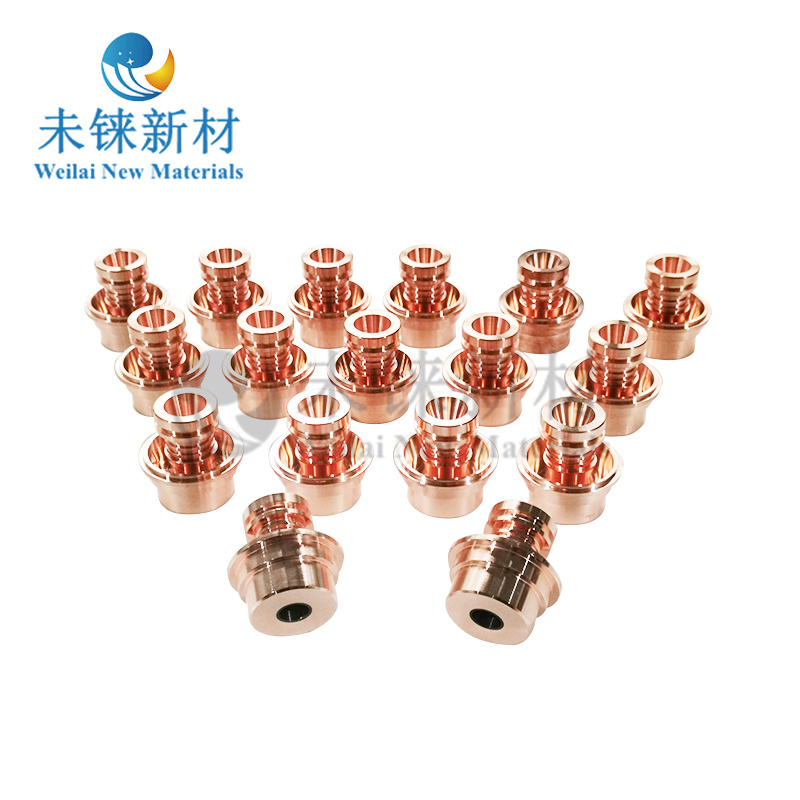

9mb nozzle has two kinds of structure, one is pure copper, no tungsten inlay; one is copper inlaid tungsten nozzle.
For nozzles containing tungsten, we can back-cast the nozzle. The back casting cost is high, but the service life is also longer.

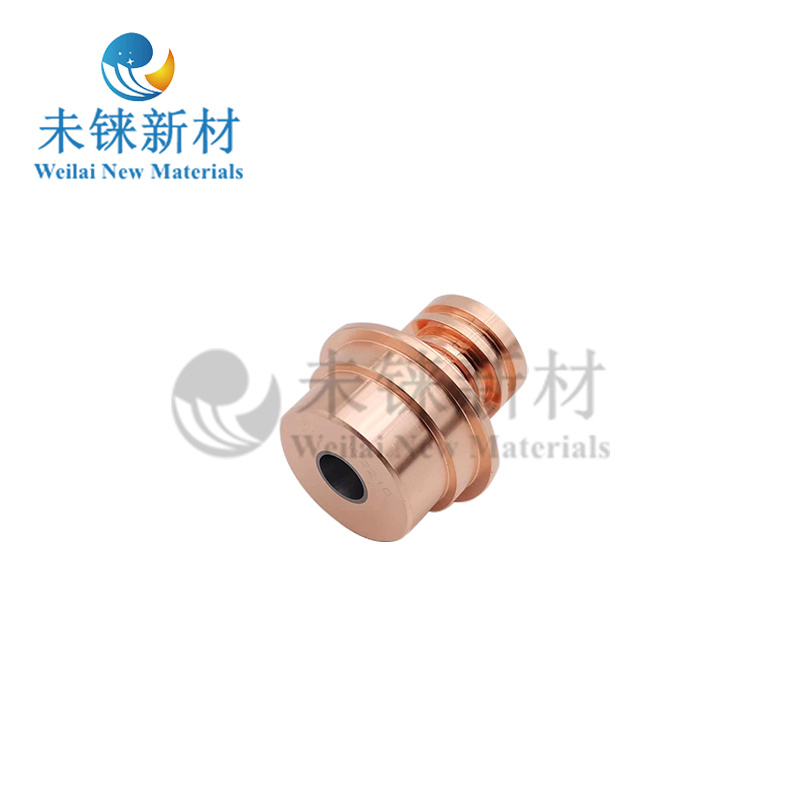

Copper-inlaid tungsten nozzle advantage
♦By embedding tungsten into the copper nozzle, copper ejection can be eliminated.
♦Compared with copper, tungsten has higher wear resistance, so it performs better in the plasma arc, so they can help control the process offset to extend the use time.
♦Compared with the standard 9MB nozzle, the life of the tungsten-containing nozzle is longer, which can reduce the maintenance of the spray gun.
♦Can reduce waste, reduce the number of nozzle replacement.

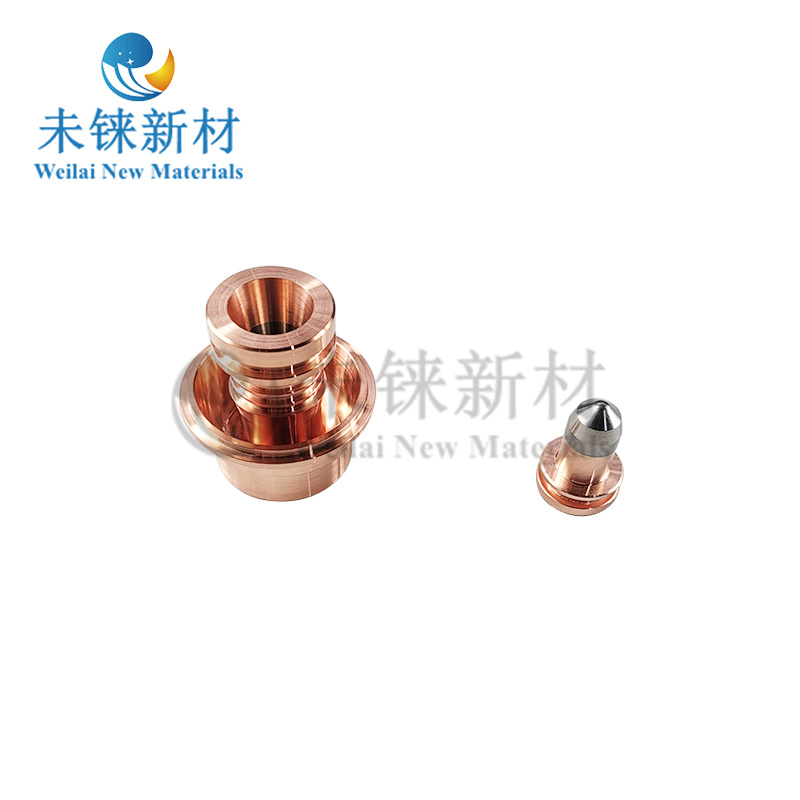

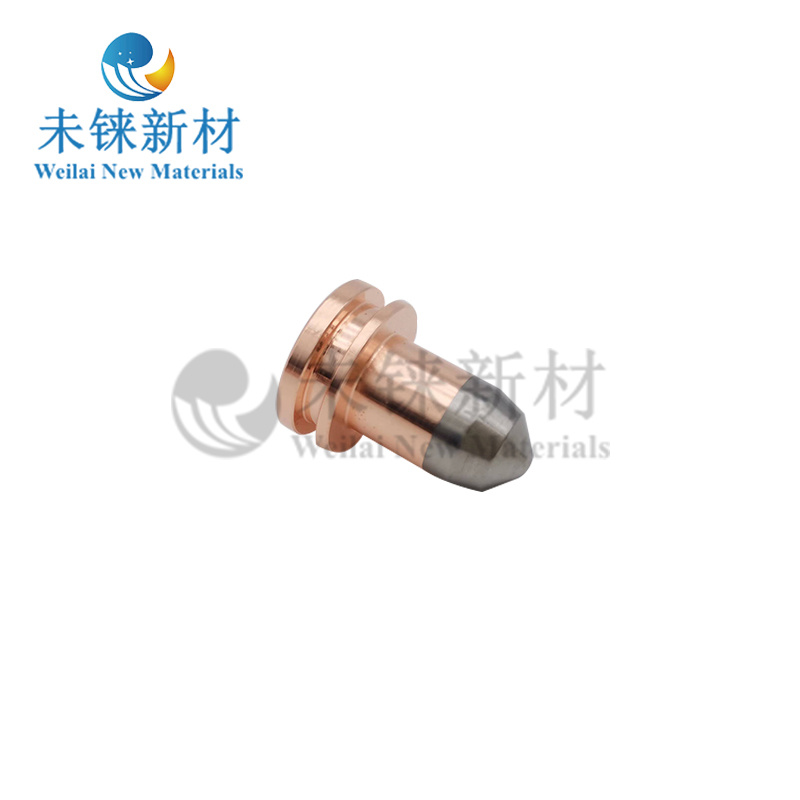

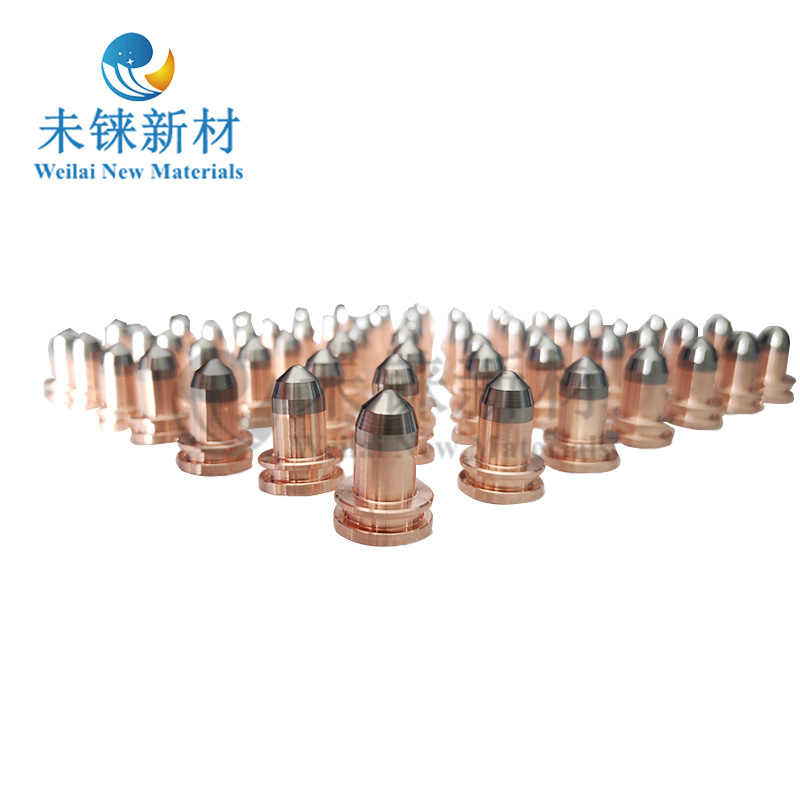

9MB plasma spray gun regular consumable accessories have electrodes and nozzles. Our company provides matching electrodes and different types of nozzles such as copper nozzles and copper-inlaid tungsten nozzles.
The other 9MB two nozzles are universal with 7MB,3M7,2MB nozzles.
Plasma Thermal Spraying Ablation Resistant Copper Inlaid Tungsten 9MB Nozzle And Electrodes Model
|
Product Model |
Product Name |
Corresponding model of Meike |
|
WLE-3M63(2M11) |
3M/2M electrode |
1084121 |
|
WLE-9M63(2M11) |
9M electrode |
1084120 |
|
WLN-G-N |
9M Nozzle |
1088073 |
|
WLN-GH-N |
9M Nozzle |
1088074 |
|
Pure copper nozzle
|
Custom nozzle
|
