Product Details

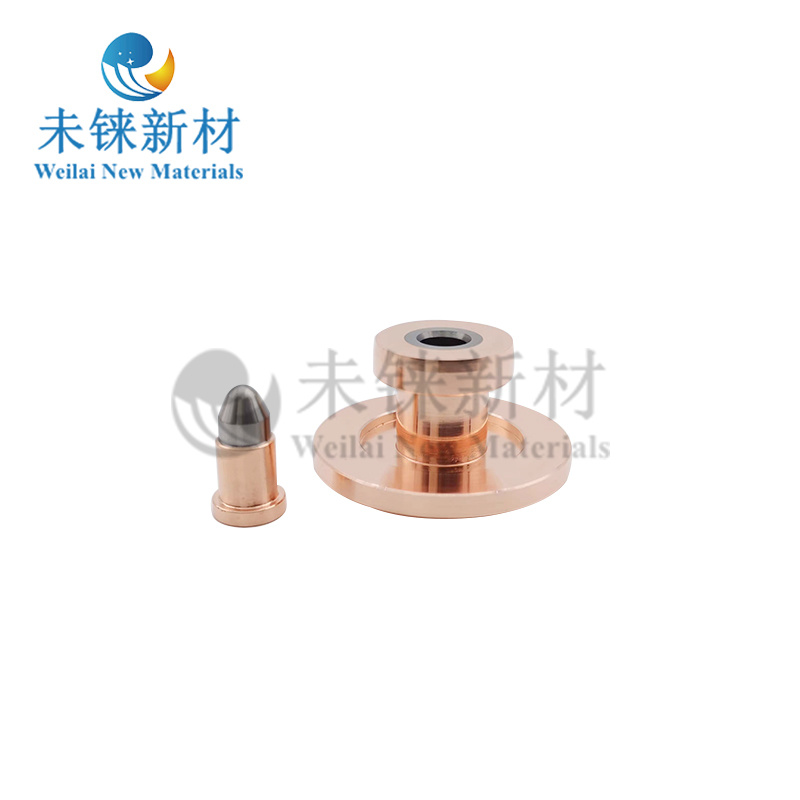

Good quality F1 nozzle and electrode
With the advent of FST's F1 plasma gun, it has been known for some time for its reliability, good coating quality, and suitable for 75mm (3 inches) inner surface coating, diameter or larger. The F1 is equipped with a tungsten nozzle, similar to the nozzle used for the F4 spray gun, which has a long life and minimizes parts replacement and production costs.
The F1 is designed to operate efficiently with continuous power up to 25 kW.
F1 has two spray angles to choose from. F1-90,F1-45, our company's F1 nozzle and electrode can match any one without changing the parameters.
F1 electrodes can be divided into two categories: one is a threaded copper-tungsten electrode, and the other is a non-threaded copper-tungsten electrode.
Due to the use of high-quality raw materials and copper-tungsten combined back casting methods, as well as advanced technology and the introduction of foreign advanced equipment, the F1 plasma nozzle and electrode provided by our company which are high-quality, excellent price, and cost-effective products are very popular in both domestic and foreign markets.
The corresponding list of nozzle electrode models of our F1 and FST product models
|
Product Model |
Product Name |
Model corresponding to FST |
|
WLE-F1-S |
F1 Threaded Electrode |
340001 |
|
WLE-F1-P |
F1 Pin Electrode |
343001 |
|
WLN-F1-5 |
F1 Nozzle |
340002 |
|
WLN-F1-6 |
F1 Nozzle |
343002 |
|

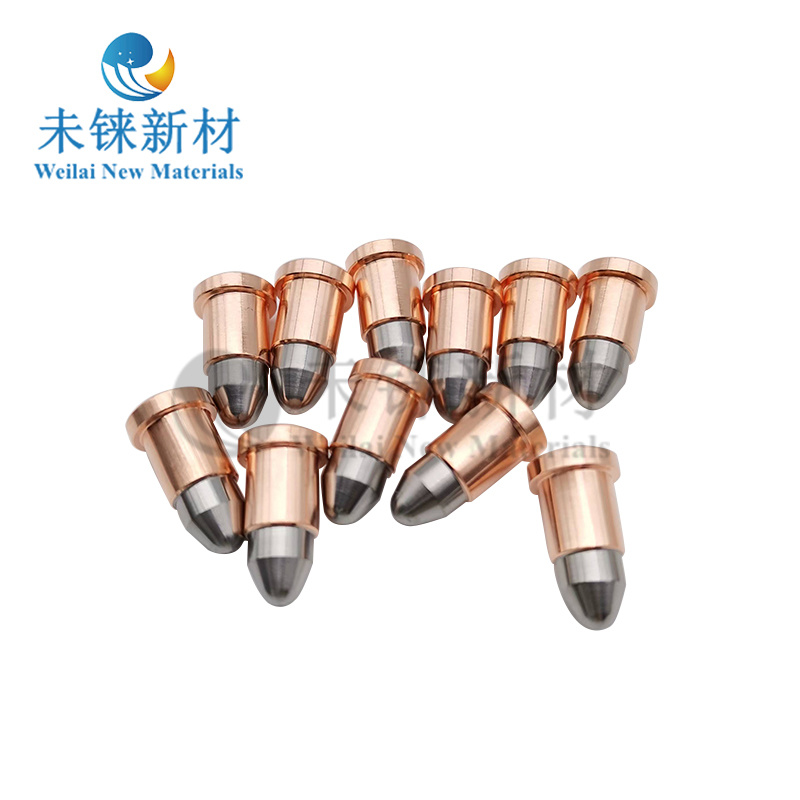

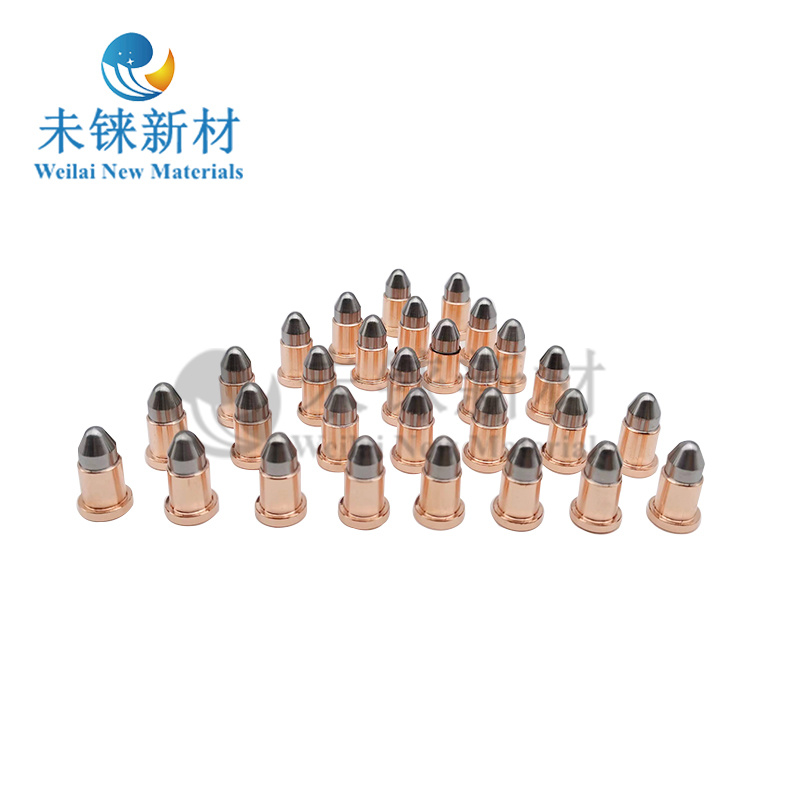

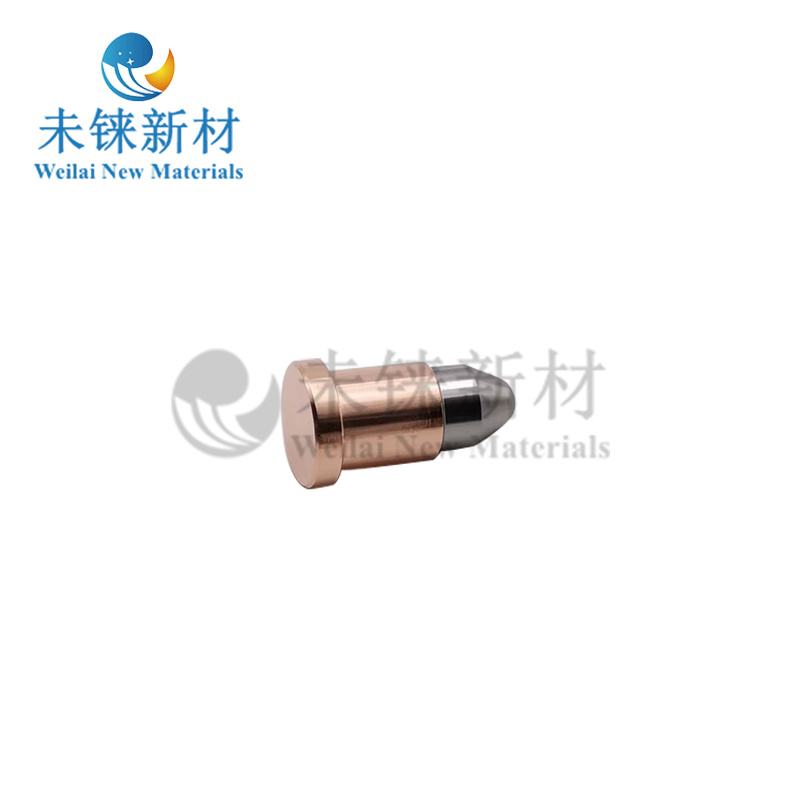

Electrodes
|

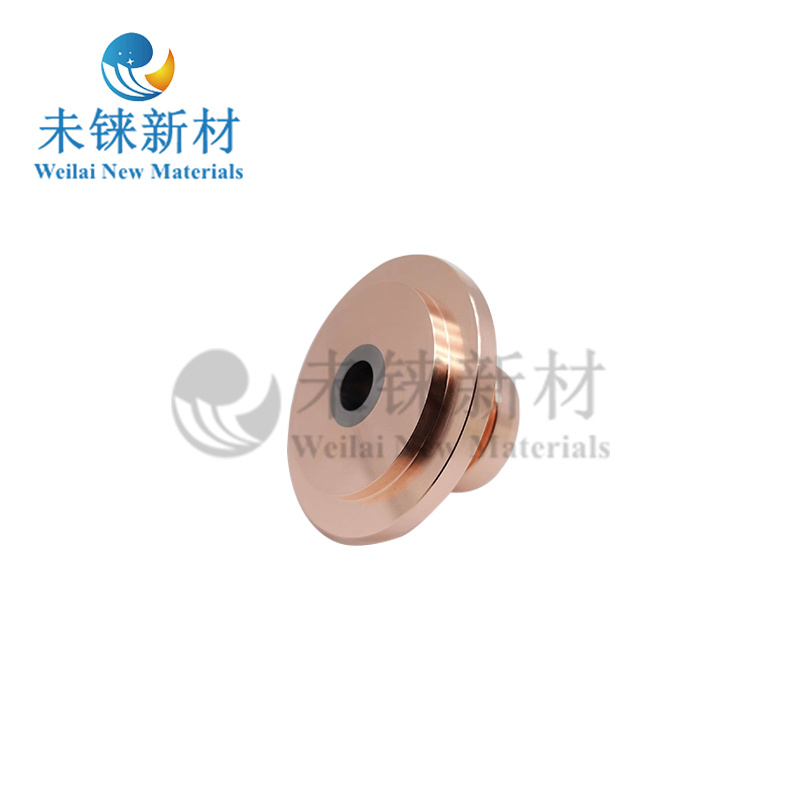

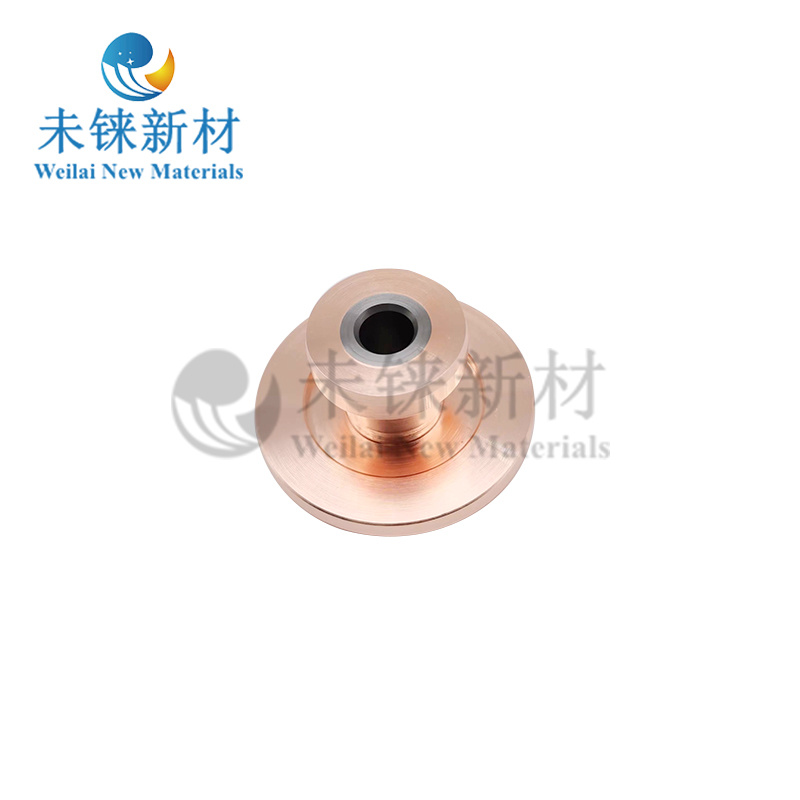

Nozzle
|
