Product Details
The anode target is the anode of the X-ray tube. As the core component of the X-ray tube, its function is to receive electron bombardment to generate X-rays and release heat at the same time. Since tungsten has a high melting point, a low vapor pressure, and can generate X-rays when irradiated with a high-speed electron beam, it is often used as a target surface material for an anode target of various X-ray tubes. The addition of rhenium can make the target material have the advantages of high strength, toughness, heat resistance and high precision.

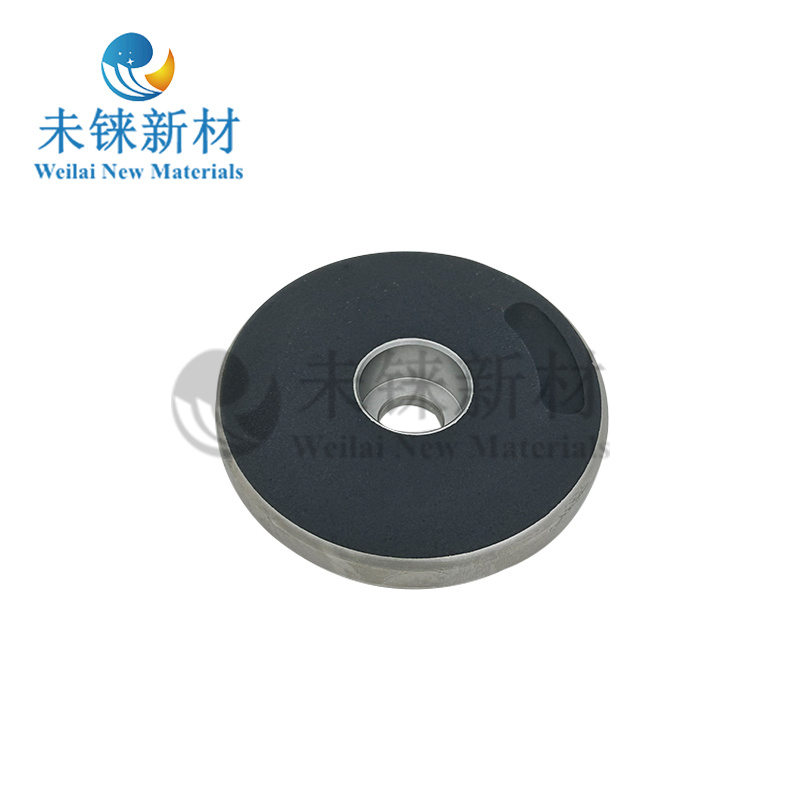

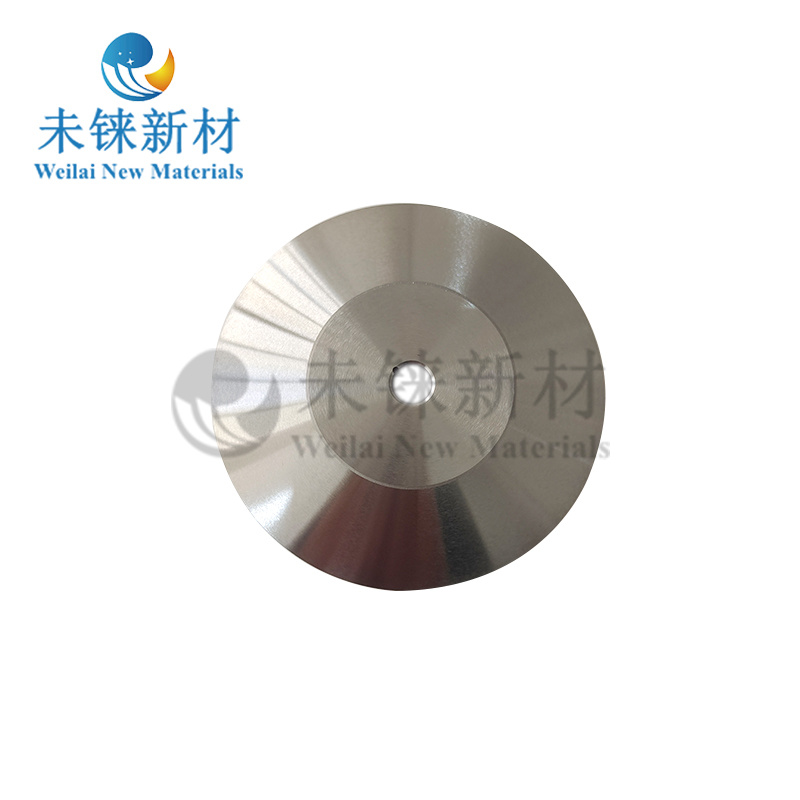

The non-rhenium new material rotating X-ray anode is composed of molybdenum alloy matrix and tungsten rhenium alloy, and can provide blackening coating and sandblasting treatment according to requirements. The rotating X-ray anode is prepared by powder metallurgy method, and the uniformity of tungsten and rhenium is ensured by process control.
Production parameters of rotating X-ray anode
| pure tungsten target disc | pure molybdenum target disc | molybdenum-based tungsten target | Molybdenum-based tungsten-rhenium cake | |
| Diameter | Φ30-200mm | Φ52.5-185mm | Φ52.5-185mm | Φ52.5-102mm |
| Thickness | 4-30mm | 7-21mm | 7-21mm | 7-21mm |
| Rake angle | 0 °-20 ° on demand | 6 °-18 ° on demand | 6 °-18 ° on demand | 6 °-18 ° on demand |
| Content (wt %) | - | - | - | 0-10 |
