Plasma Spray Gun Consumables
Classification:
Key words:
E-mail:
Product Details

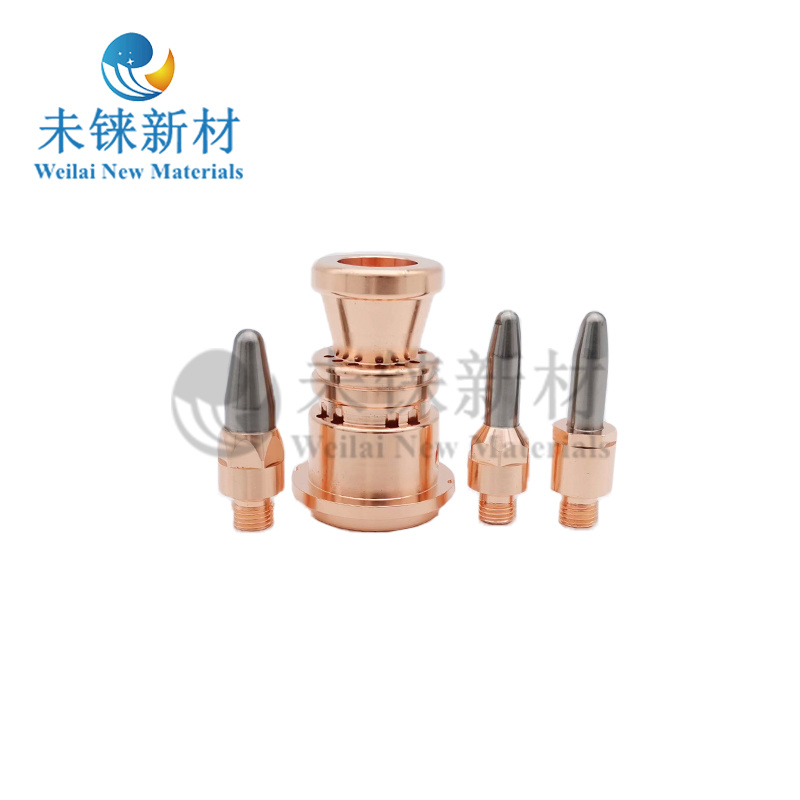

SG-100 plasma thermal spraying anode and cathode
SG-100 plasma spray gun
The SG100 plasma spray gun produced by Praxair is a very flexible spray gun that can be used in a variety of application scenarios, with a power of 80KW. If you have higher requirements for coating, or need mass production, or small batch testing, SG100 spray gun can be very suitable.
This spray gun has two modes of internal powder feeding and external powder feeding. Different modes can provide a variety of incident angles, obtain better spraying speed, or mix a variety of spraying materials.
Different modes, matching different hardware, can form different working modes. For different modes, we can provide suitable nozzles (anode) and electrodes (cathode).
What material is used for anode?
We can see that all copper materials are used in the market, but there are many kinds of copper materials, and the compositions included by the purity of different copper materials are different. For specific industries that require special treatment of copper, we have been supplying copper anodes for different industries, and we are very clear about the requirements of customers for materials in different industries.
Matching of anode:
The product accessories provided by Praxair have high precision, and the general processing manufacturers can provide similar shapes, but there is a big gap in the control of product size.
We have been providing anode and cathode accessories for various plasma spraying service providers, and the size control can be very accurate.
SG-100 plasma thermal spraying anode and cathodeModel
|
Product Model |
Product Name |
Corresponding OEM model |
|
WLE-SG100-129 |
SG100 electrode |
843083129 |
|
WLE-SG100-720 |
SG100 electrode |
841083720 |
|
WLN-SG100-730 |
SG100 Nozzle |
02083-730 |
|
WLN-SG100-145 |
SG100 Nozzle |
03083-145 |
|
WLN-SG100-165 |
SG100 Nozzle |
03083-165 |
|
WLN-SG100-175 |
SG100 Nozzle |
03083-175 |
|

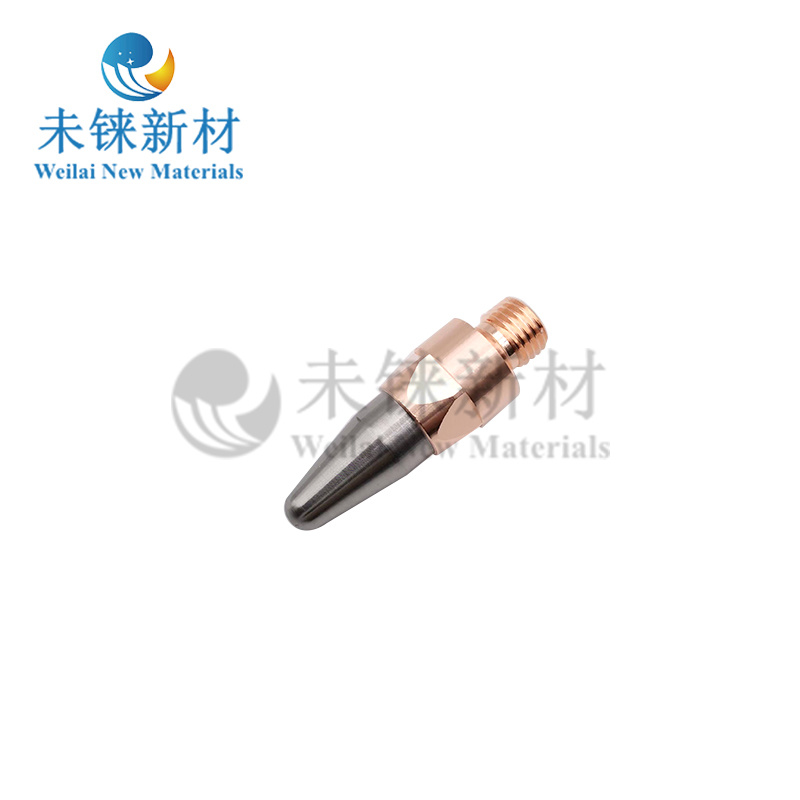

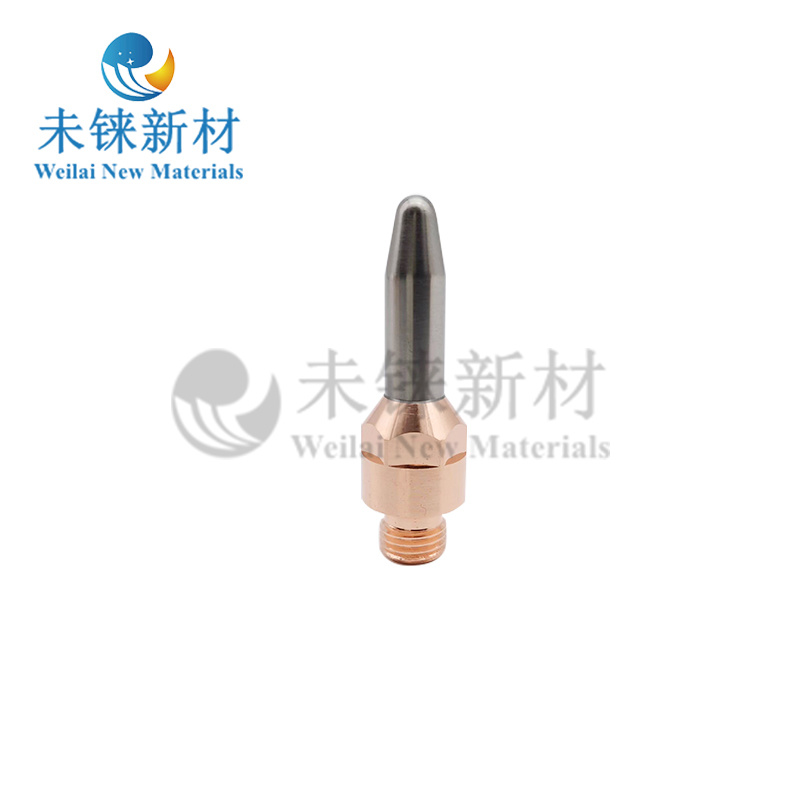

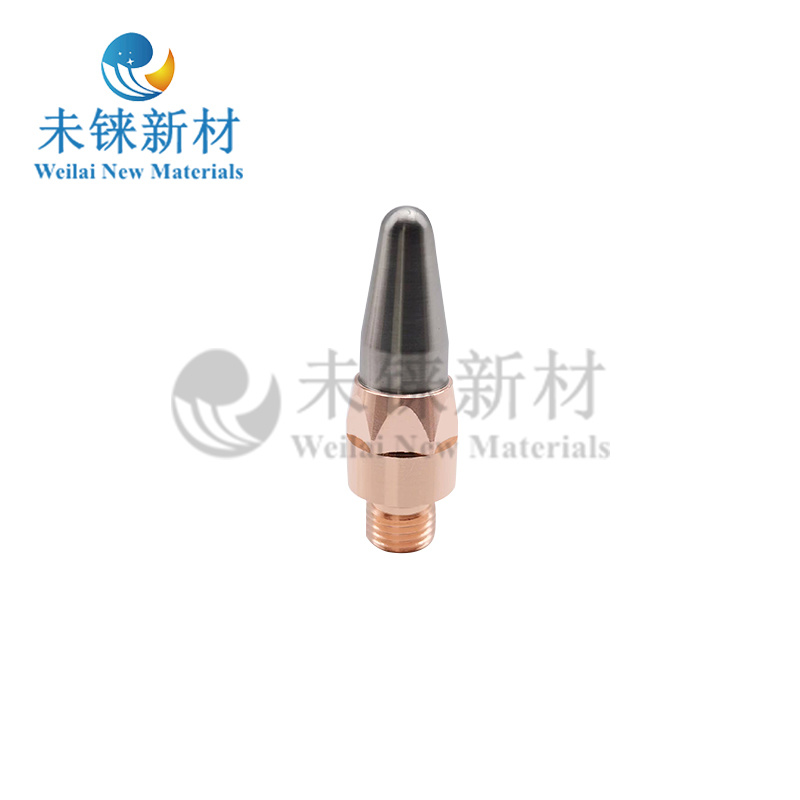

Electrodes
|

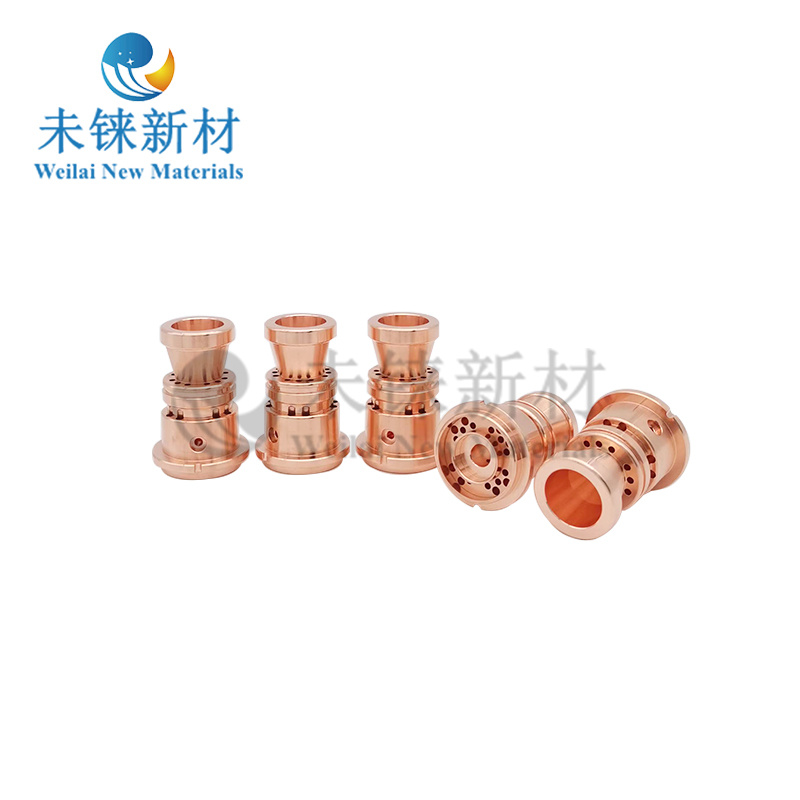

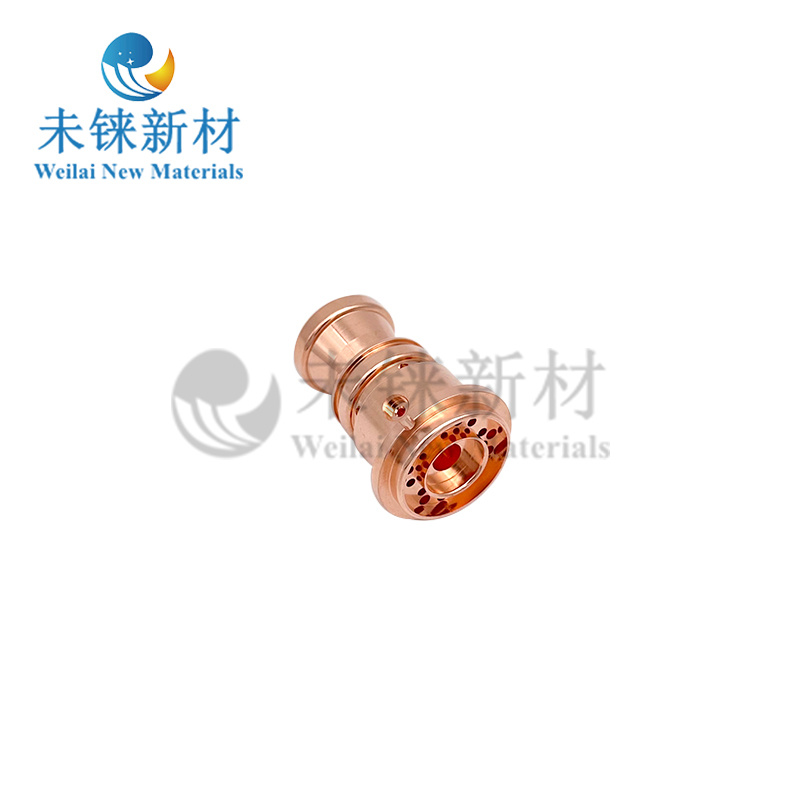

Nozzle
|
